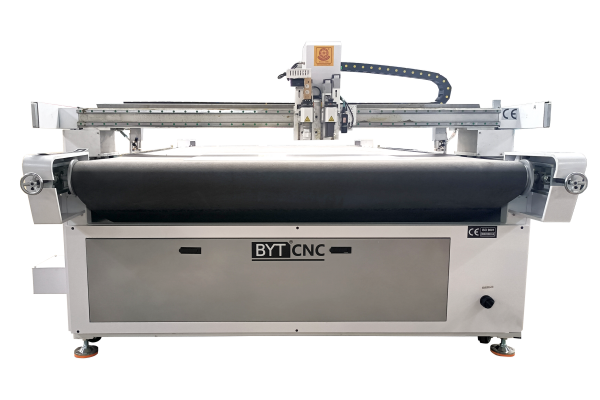

Industrial-grade BYT CNC Oscillating Cutting Machine delivers stable efficient high-precision auto-feeding cutting with versatile tools for heavy-duty industrial material processing
High-Precision Stable Drive
750W Leadshine servo, precision rack & guide rail, no belt slippage, faster accurate cutting.

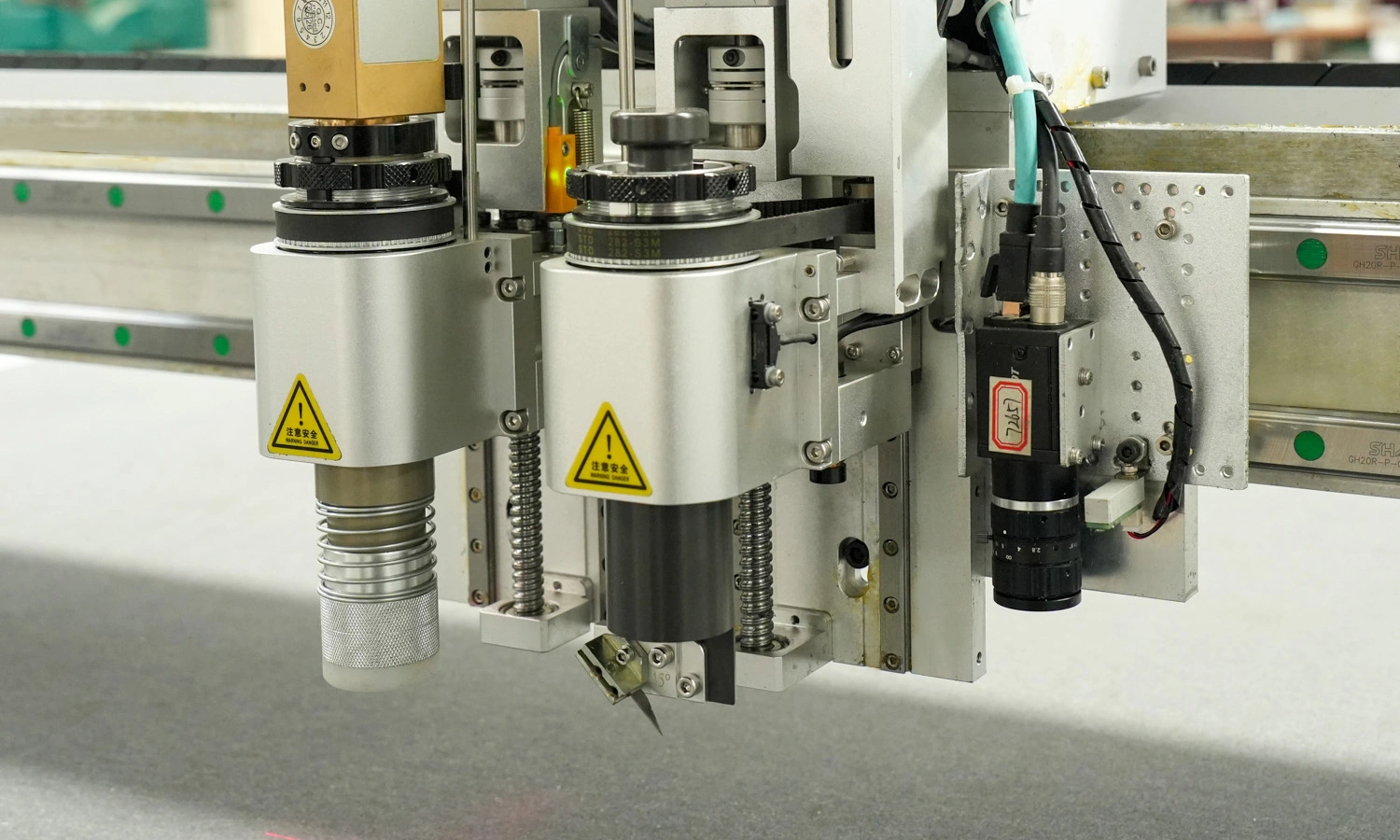

Versatile Quick-Change Tool System
11 cutter types supported, one machine for multi-material full-process processing.

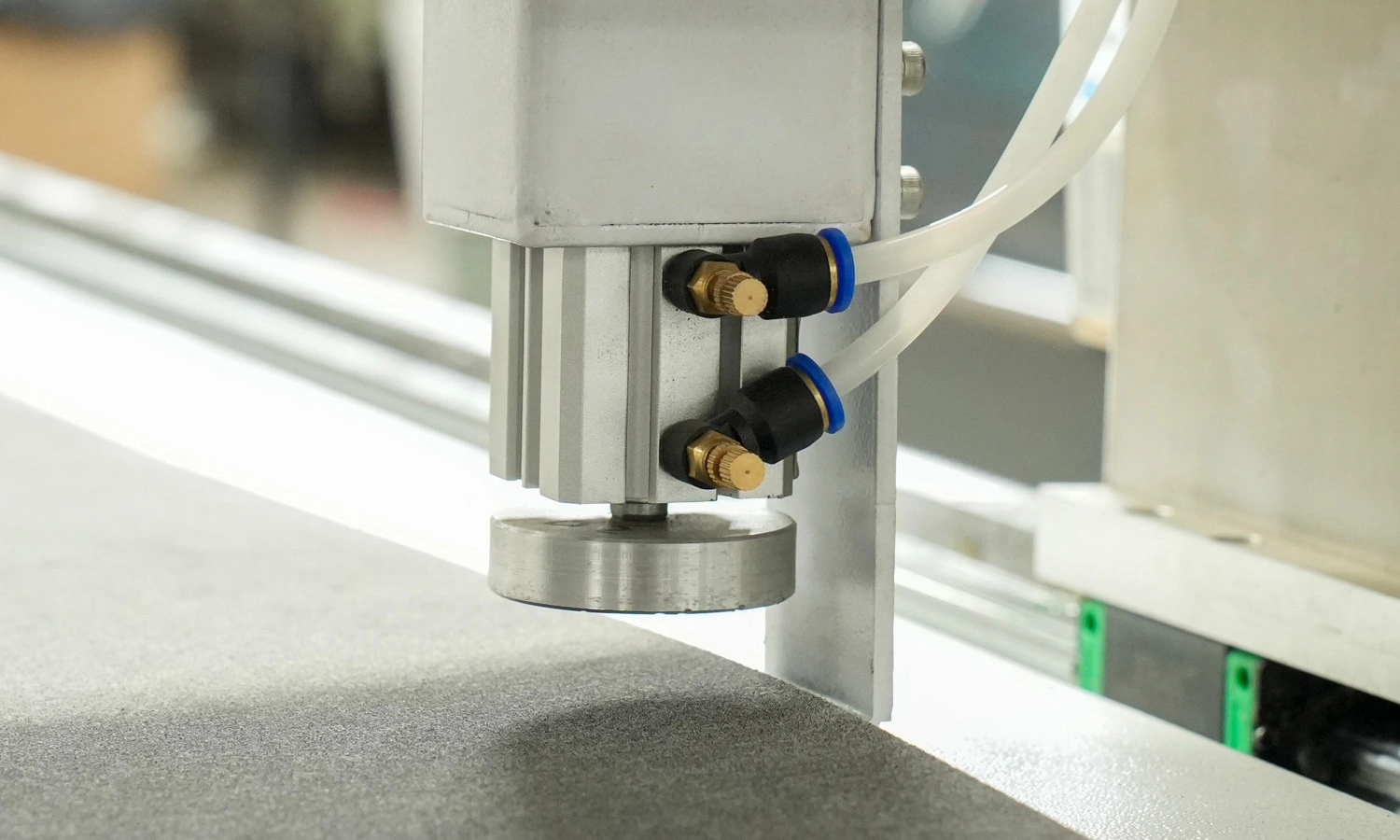

Automated High-Efficiency Production
Auto-feeding, CCD positioning, calibration-free cutting, higher efficiency, less waste.
High-Suction Vacuum Worktable
7.5kW vacuum pump + cut-resistant felt, secure materials, stable cutting quality.
Industrial-Grade Customizable Quality
CE/ISO certified, 30+ years brand, multiple models, industrial customization available.
Top-tier oscillating cutting machine with auto feeding system, support thicker materials and heavy-duty use. Backed by continuous SGS certification, you’re guaranteed a reliable, long-lasting solution.
| Equipment Model | BZD-1325 (Automatic Feeding) |
BZD-1625 (Automatic Feeding) |
BZD-1737 (Automatic Feeding) |
| Processing Range | 1300*2500mm | 1600*2500mm | 1700*3700mm |
| Feeding Height | 100mm | 100mm | 100mm |
| Worktable | Vacuum adsorption worktable, with roll material automatic feeding, automatic deviation correction function, and feeder feeding rack; the bed is equipped with deep shaft anti-film and anti-static |
||

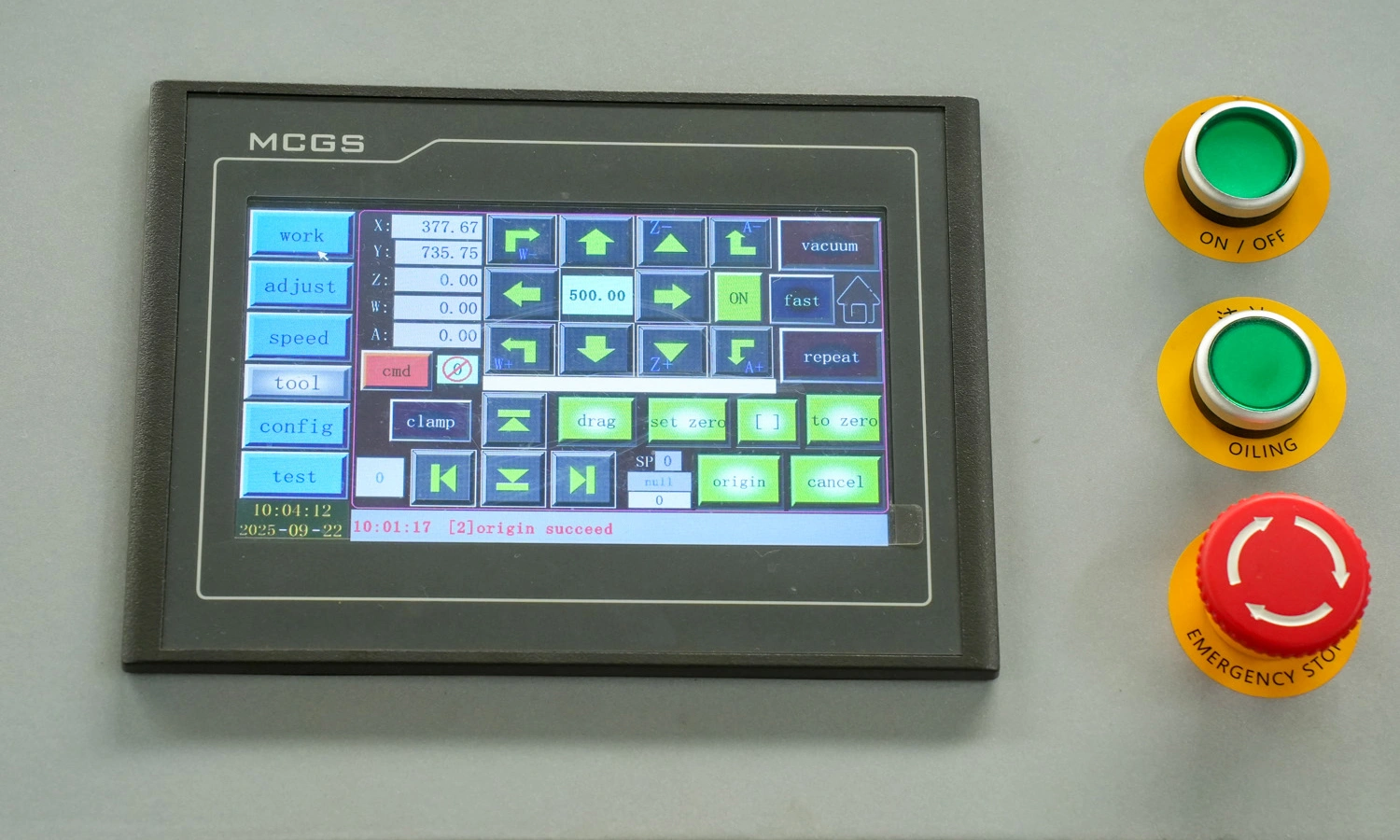

| System Adopted | Full touch screen industrial control system | ||
| Machine Head | Vibrating Knife | ||
| Servo Motor | XY Leadshine 750W servo motor | ||
| Rack | Module 2 ground rack | ||
| Guide Rail | Taiwan Dinghan 20 square guide rail | ||
| Vacuum Pump | 7.5kW high-suction air-cooled vacuum pump | ||
| Feeding Method | Automatic Feeding | ||
| Machine Idle Speed | 80-100m/min (for single-layer fabric/leather cutting); 60-80m/min (for sponge and packaging carton cutting); 10-20m/min | ||
| Working Voltage | 380V/50HZ/3P | ||
| Machine Volume | L3.4*W2*H1.6m (excluding wooden box) |
L3.75*W2.2*H1.6m (excluding wooden box) |
L4.6*W2.3*H1.6m (excluding wooden box) |
| Machine Weight | 800kg | 900kg | 1100kg |
BYT High Precision Oscillating Cutting Machine, 30+ Years Experience, Multi-material Adaptable, Free Custom Solution & Quote, Inquire Now.
Care about the product quality? Don’t worry, it has already been tested.
1. 30 years of professional experience: ensuring top-tier machine reliability.
2. 2024 software update: driving increased operational efficiency.
3. Comprehensive after-sales: expert engineer training, not just manuals.
